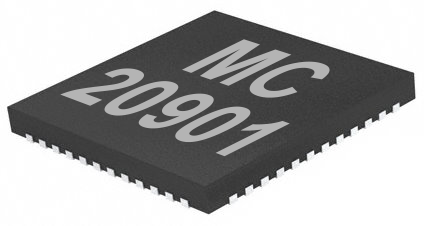

MC20901 全新原装

MC20902  5频道MIPI D-PHY FPGA桥IC

大量供应

5通道MIPI D-PHY到FPGA桥芯片

MC 20901是一个高性能的5通道FPGA桥芯片，它将多达5 MIPI D-PHY兼容的输入流转换为LVDS高速和CMOS低速输出数据流。
MC 20901还可以将SLV信号转换为LVDS信号。
MC 20901输出可以直接连接到FPGA或DSP。
数据速率在HS(高速)模式下从0 Mbps到2.5Gbps不等，在LPDT(低功率数据传输)模式下高达20 Mbps。

关键特征

• 5通道(4个数据+1个时钟)MIPI到FPGA设备

• 输入符合使用dsi、csi-1和csi-2标准的mipi d-phy接口。

• HS模式数据速率：最高2.5Gbps

• LPDT模式数据速率：高达20 Mbps

• 支持BTA(A或E通道的巴士转接)

• 单反车辆输入与LVDS输出的转换

• SLV数据速率：最高2.5 Gbps

• d-phy终端根据hs或lp模式自动切换

• 不需要额外的平移器

• 提供QFN-48包(VQFN-48)

• 7mm*7mm*0.9mm，0.5mm螺距

5 Channel MIPI D-PHY to FPGA Bridge IC

The MC20901 is a high performance 5 channel FPGA bridge IC, which converts up to 5 MIPI D-PHY compliant input streams into LVDS high speed and CMOS low speed output data streams.
The MC20901 can also convert SLVS signals into LVDS signals.
The MC20901 outputs can be directly connected to FPGAs or DSPs.
Data rates range from 0 Mbps to 2.5 Gbps in HS (High Speed) mode and up to 20 Mbps in LPDT (Low Power Data Transmission) mode.

Key Features

• 5 channel (4 data + 1 clock) MIPI to FPGA device

• Inputs are compliant to MIPI D-PHY interfaces using the DSI, CSI-1 and CSI-2 standards

• HS mode data rate: up to a maximum of 2.5 Gbps

• LPDT mode data rate: up to 20 Mbps

• BTA supported (Bus Turnaround at channel A or E)

• Conversion of SLVS inputs to LVDS outputs

• SLVS data rate: up to a maximum of 2.5 Gbps

• D-PHY termination automatically switched depending on HS or LP mode

• No additional level shifters needed

• Available as a QFN-48 package (VQFN-48)
